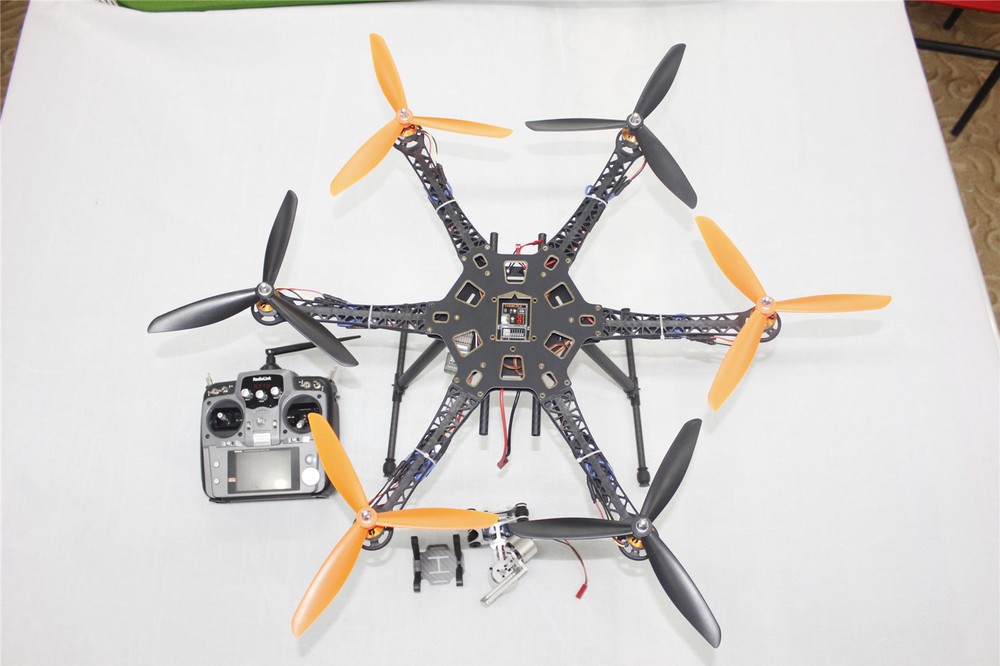

Drone Upgraded Kit HMF S550 9045 3-Prop 6Axis Multi QuadCopter UFO RTF/ARF with 2-Axis Gimbal No Battery / Charger F08618-H

$441.21

SKU: 32580936487 Category:

Description




Drone Upgraded Kit HMF S550 9045 3-Blade 6Axle Multi QuadCopter UFO RTF/ARF with 2-Axle Gimbal No Battery/Charger


Specifications
have in stock
MOQ:1

Packing including :
1X HMF S550 Carbon Fiber RC Hexacopter Frame Kit + Landing Gear 6-Axle FPV F550 Flamewheel Upgrade
6X A 2212 A2212 1000KV Brushless Outrunner Motor
6X30A Brushless ESC
3*9045 3
1*RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D
1XAluminum 2-Axle Gimbal Camera Mount PTZ w/ Brushless Motor Controller

Note :that the one do not including the battery /charger
Note : the heli , do not including the camera

Detail:

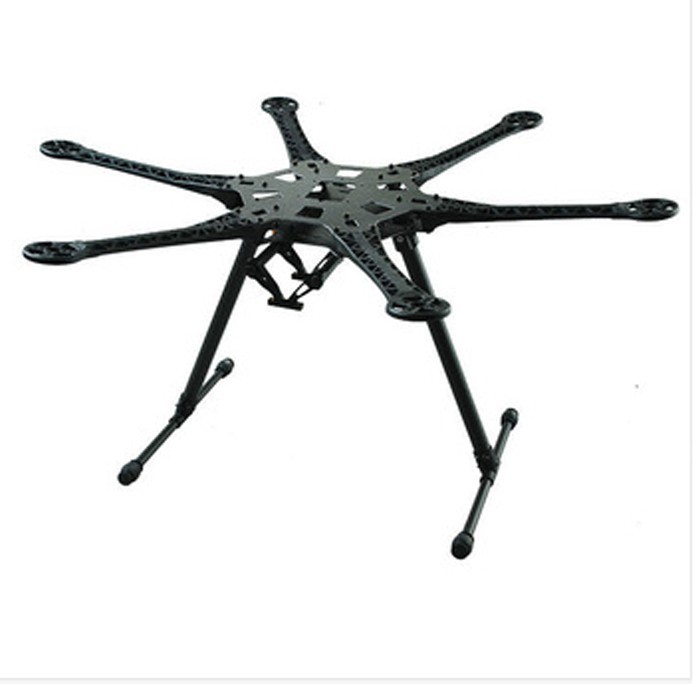

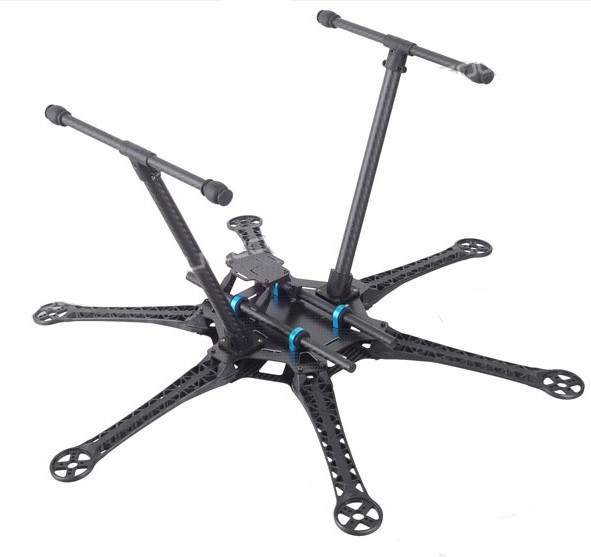

HMF S550 Carbon Fiber RC Hexacopter Frame Kit + Landing Gear 6-Axle  FPV F550 Flamewheel Upgrade

Features:
– Adopts S800 upward tilt arm design
– Plastic injection moduling, ensures hardness and lighter weight
– Brushless gimbal compatible for FPV (Not included)

Specifications:
– Wheelbase: 528mm
– Weight: 550g/720g(without/with gimbal)
– Motor suggest: 2212 KV980, 2216 KV880 KV900, 3108 KV720 KV900
– Prop suggest: 8038 9047 1038 1045 1047
– Battery suggest: 3S-4S 2200mAh-5200mAh

Package included:
1 set of Carbon Fiber Hexacopter Frame kit
1 set of Tall land skid

30A Brushless ESC

1  Specification

1.1 Output:  Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC:  3A
1.4 Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.

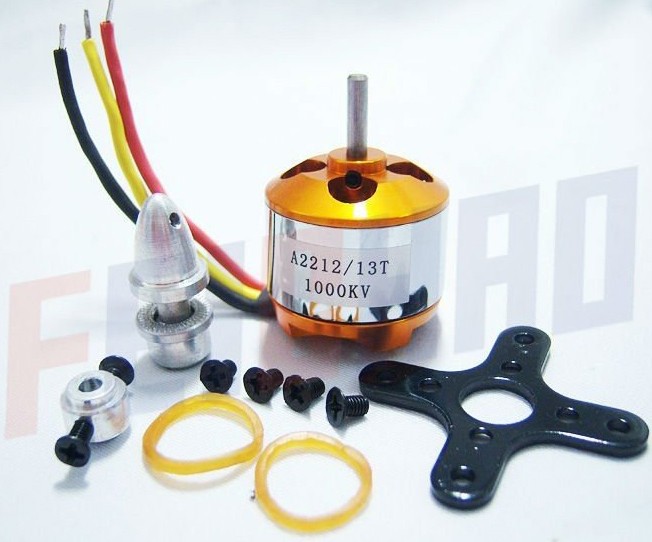

A 2212 A2212 1000KV Brushless Outrunner Motor

KV: 1000
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm

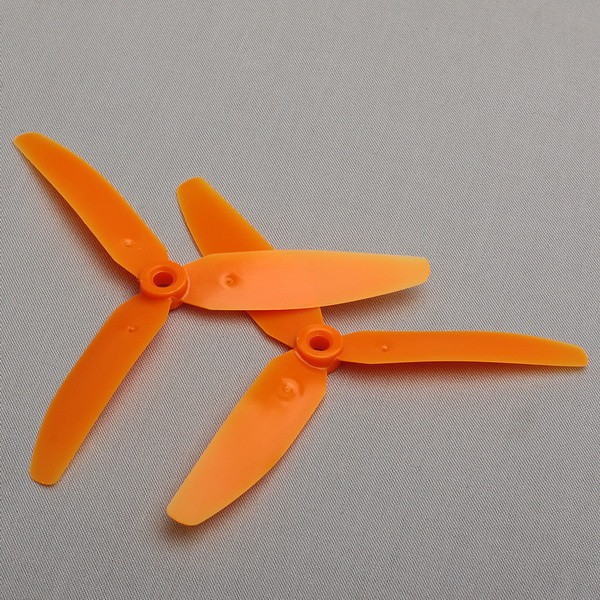

9045 3-Blade Propellers
That have several different color , we will ship at random color


RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D

ship at random color
RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D
Technical Parameter:
1. Dimension:18×9.5×22cm;
2. Weight:0.95kg;
3. Frequency:2.4GHz ISM band(2400MHz~2485MHz);
4. Modulation mode:QSPK;
5. Channel bandwidth:5.0MHz;
6. Spread spectrum:DSSS;
7. Adjacent channel rejection:>38dBM;
8. Transmitter power: <100mW(PCB testing),
<20dBm(3 meter air testing);
9. Operating Voltage:8.6~15V;
10. Operating Current:<95mA;
11. Control distance:800 meters ground;
12. Channel:10 Channel,8~10 channel are customizable;
13. Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
14. Simulator model:under the simulator model the transmitter action turn off,change to power saving model;
15. Screen:16 colorful screen,size 78×52mm,320*480 pixel.

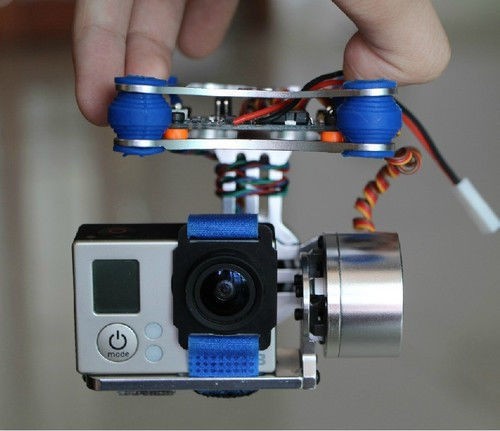

Aluminum 2-Axle Gimbal Camera Mount PTZ w/ Brushless Motor Controller
Just the gimbal , do not including the camera

Note:
1.This gimbal is not include Camera
2.Users need learn how to install the component and test its effects.
It’s will get better results after a period of testing.

Assembled tuning good, no tuning assembly instructions


The Motors’ Color will be changed by manufacturer,But same function.Tested before pacakge.

Features:
– Simple structure and light weight,CNC aluminum alloy structure
– Brushless motor direct drive
– With anti-vibration rubber balls,easy to adjust
– Compatible with Camera
– with 2pcs 2208 motors and V3 gimbal controller,sensor
– with motor protector which can help heat dissipation
