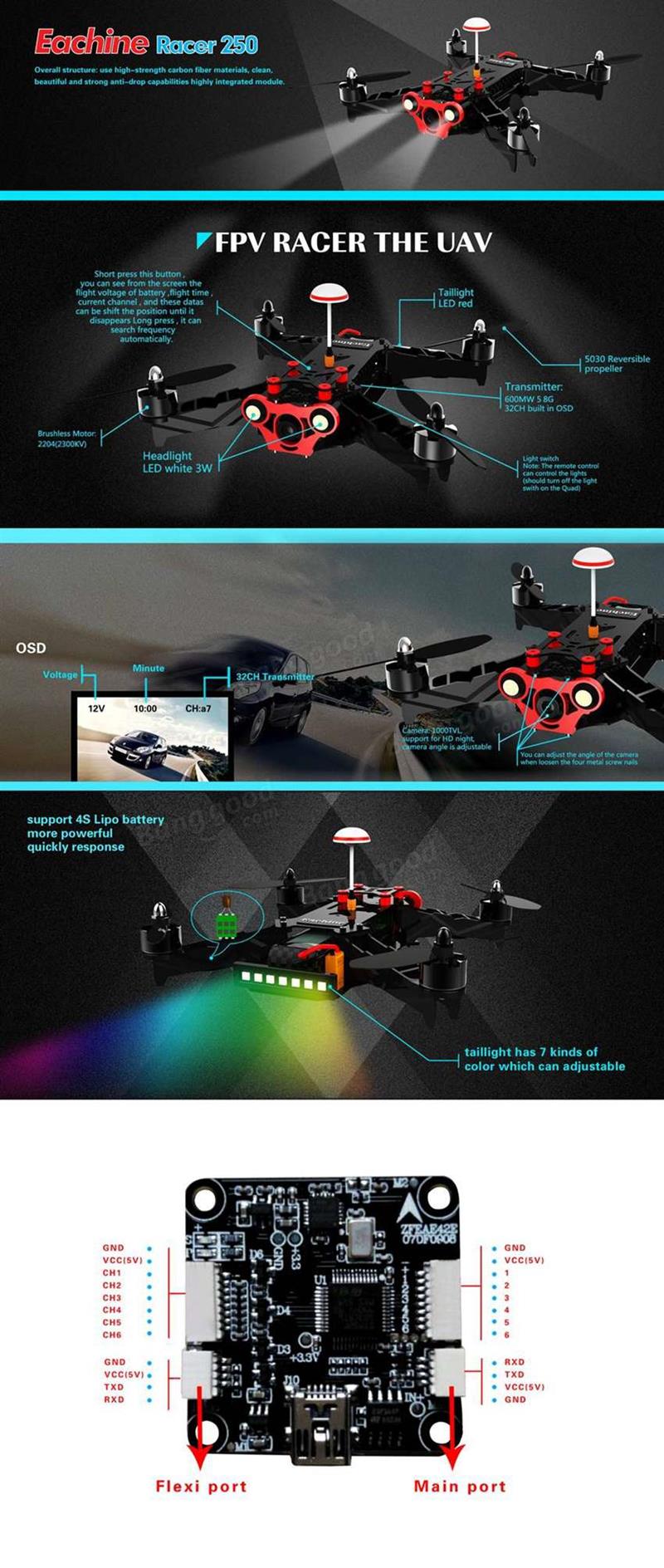

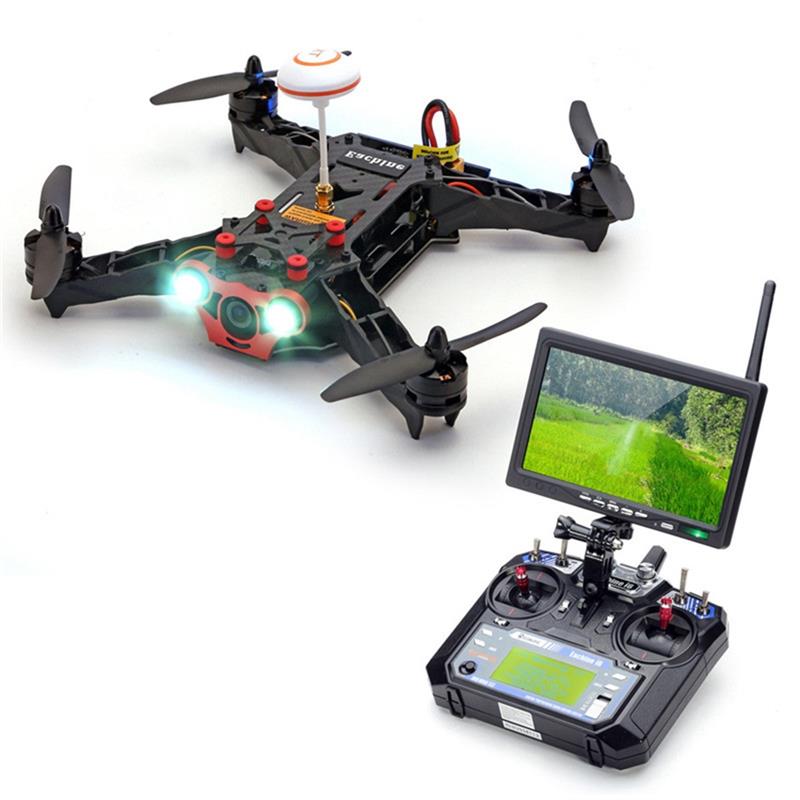

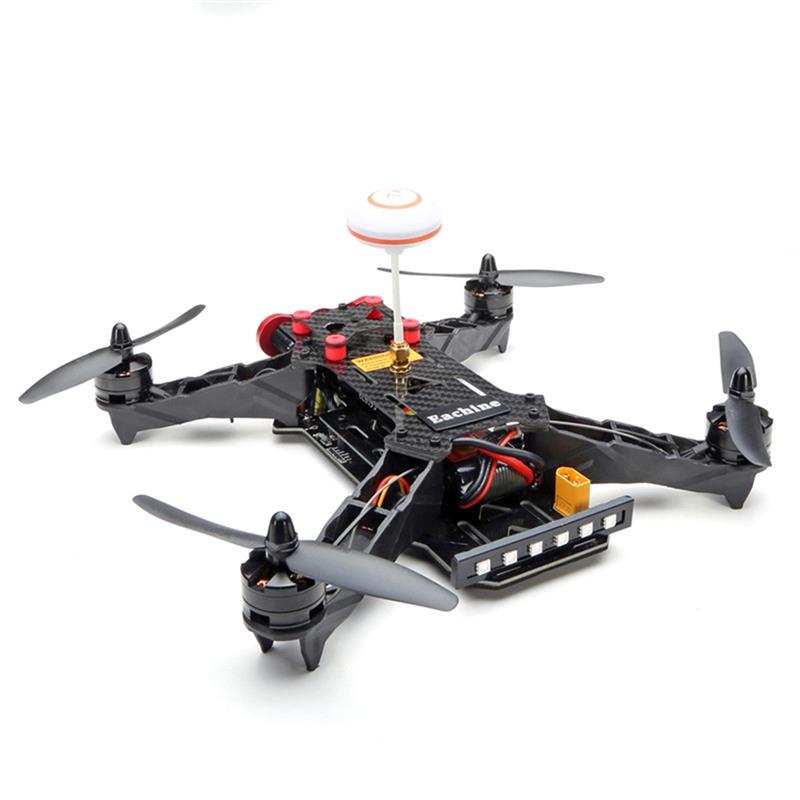

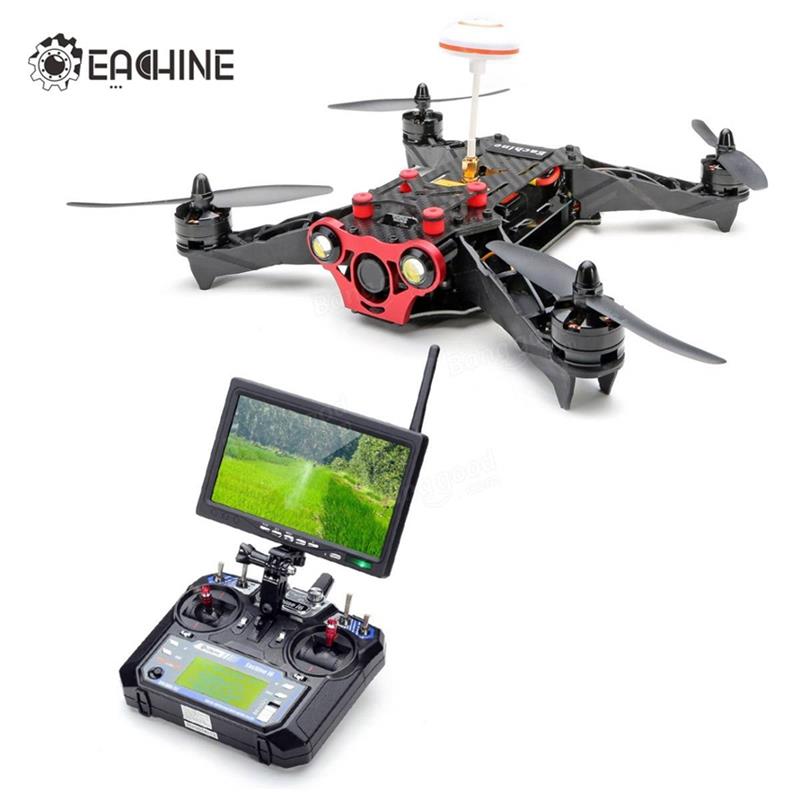

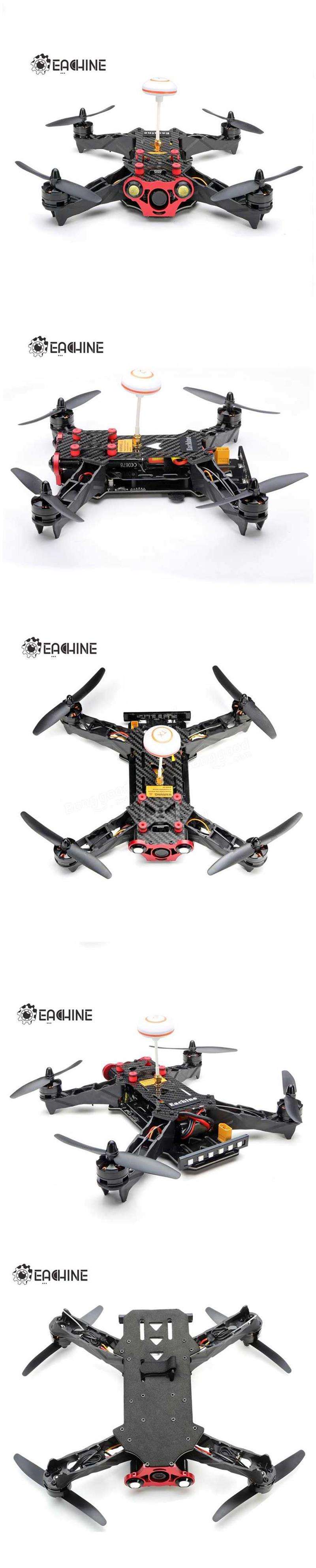

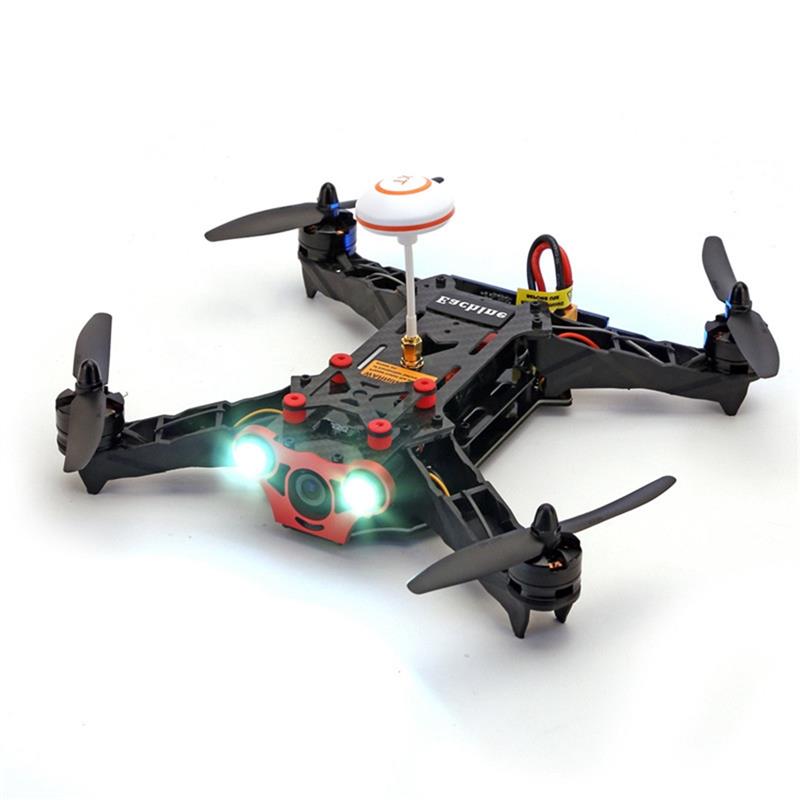

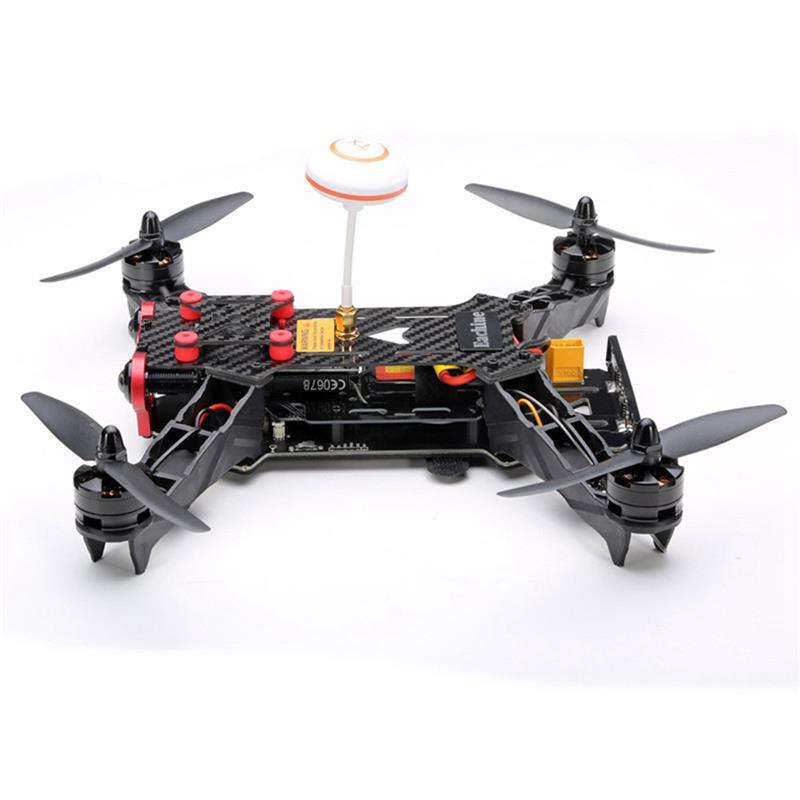

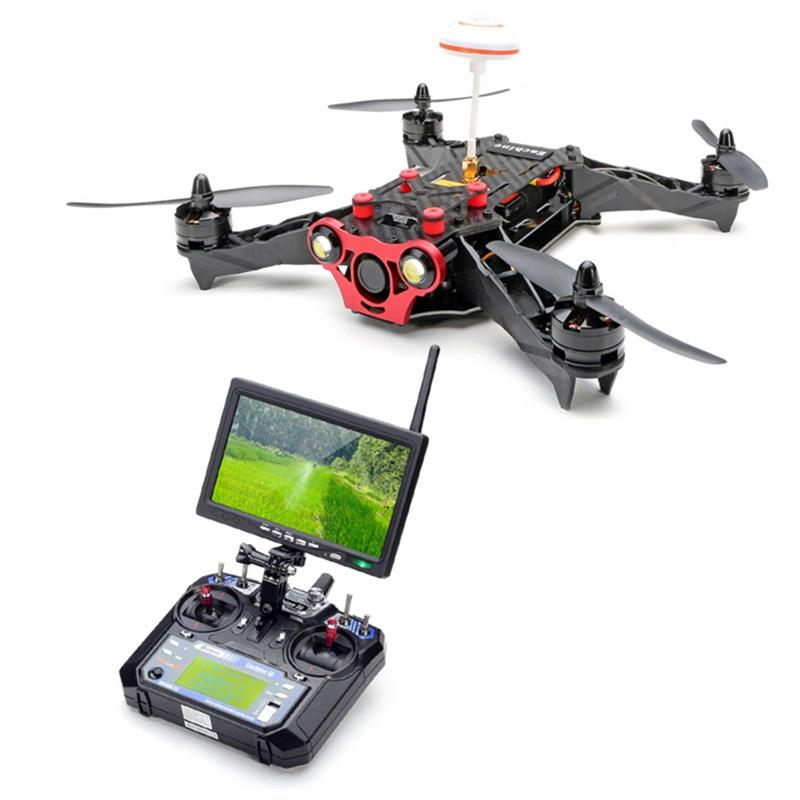

|Racer 250 FPV Drone||
Main wing length: 140mm
Weight: 400g (without battery)

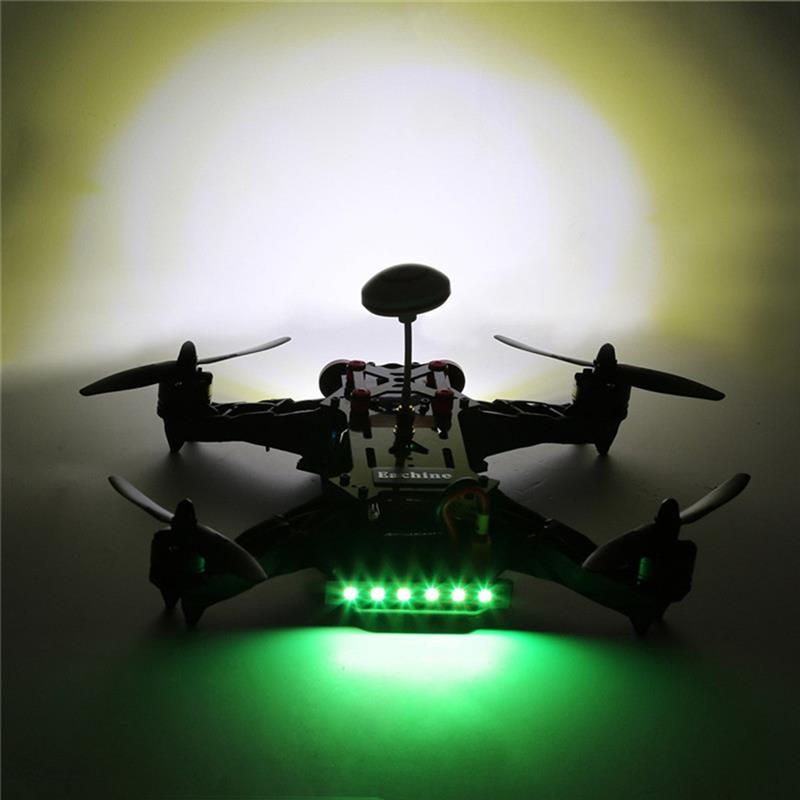

Headlight LED: white 3W
Camera: 1000TVL, support for HD night, camera angle is adjustable
Brushless motor: 2204 2300KV
Brushless ESC: Simonk 12A
Flight controller: CC3D with Flexi port and Main port

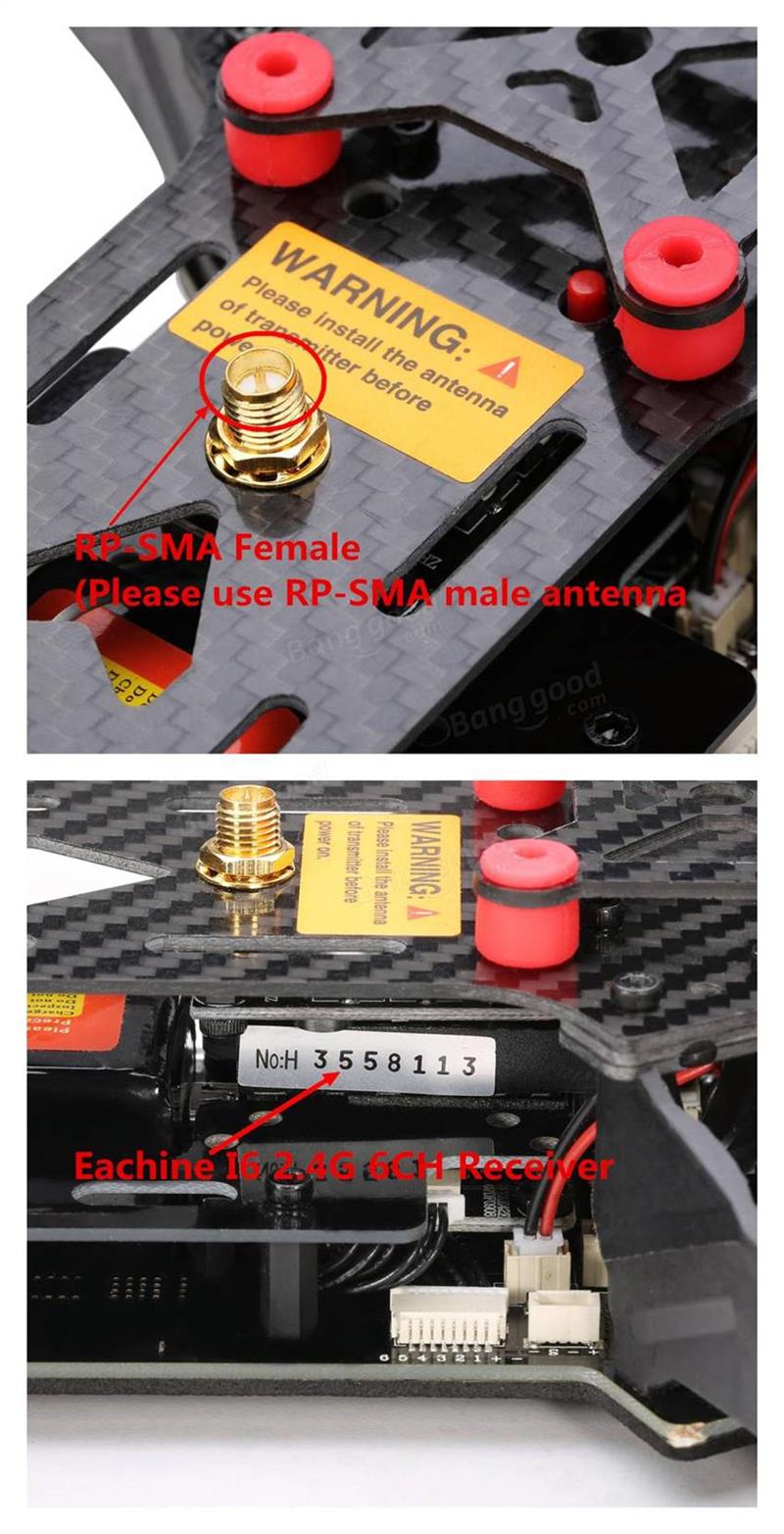

Receiver: Eachine I6 2.4G 6CH Receiver (included)
Remote control: Eachine I6 2.4G 6 channel (included)

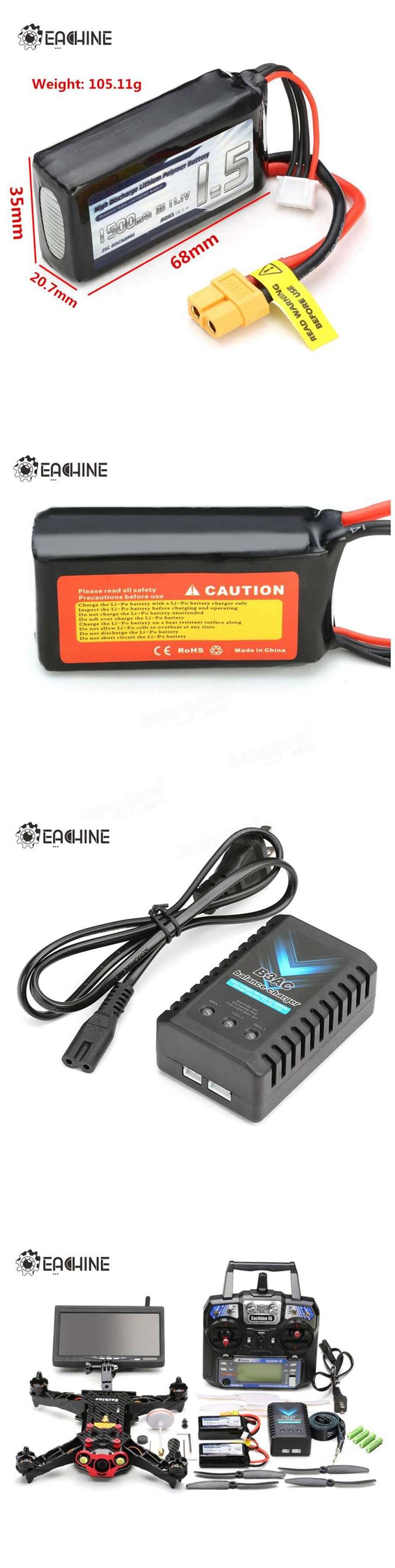

Lipo battery: 11.1V 1500mAh 25C 3S
Transmitter: 600mw 5.8G 32CH built in OSD
Flight time: 10-14 mins
Working temperature: -10°C to +40°C
Real-time image transmission, automatic search frequency, snowflakes screen
bulit-in OSD (the flight volatge of battery, flight time, current channel).
Carbon fiber, super anti-fall structure.
Easy disassembly quick change propeller device.
Ultrafast flight speed easily manipulated.
Long distance remote control high sensitivity.
Enjoy ignoring crossing barriers.

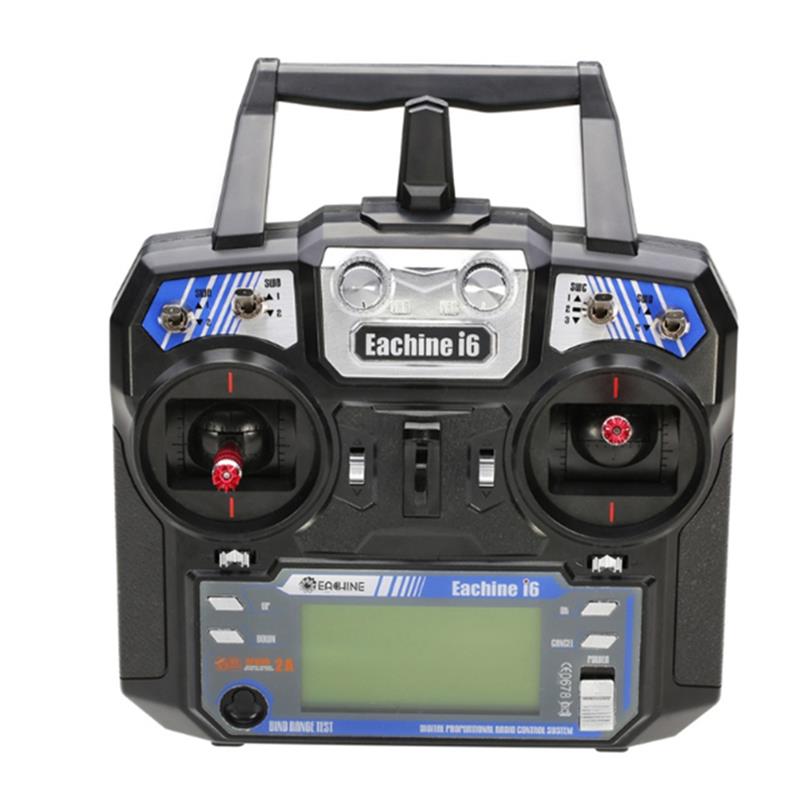

|Eachine I6 2.4G Transmitter|| Channels: 6 Channels
RF Range: 2.40-2.48GHz
RF Power: Less Than 20dBm
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output: PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Power: 6V 1.5AAx4
Display mode: Transflective STN positive type, 128×64 dot matrix VA73x39mm,white backlight.
On-line update: yes
Model Memories: 20
| Works in the frequency range of 2.405 to 2.475GHz.This -band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency -band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
|Eachine I6 2.4G 6 channel Receiver|| Channels: 6 Channels
RF Range: 2.40-2.48GHz
RF power:less than 20dBm
ANT length: 26mm
i-BUS port: NO
Data Acquisition port: NO

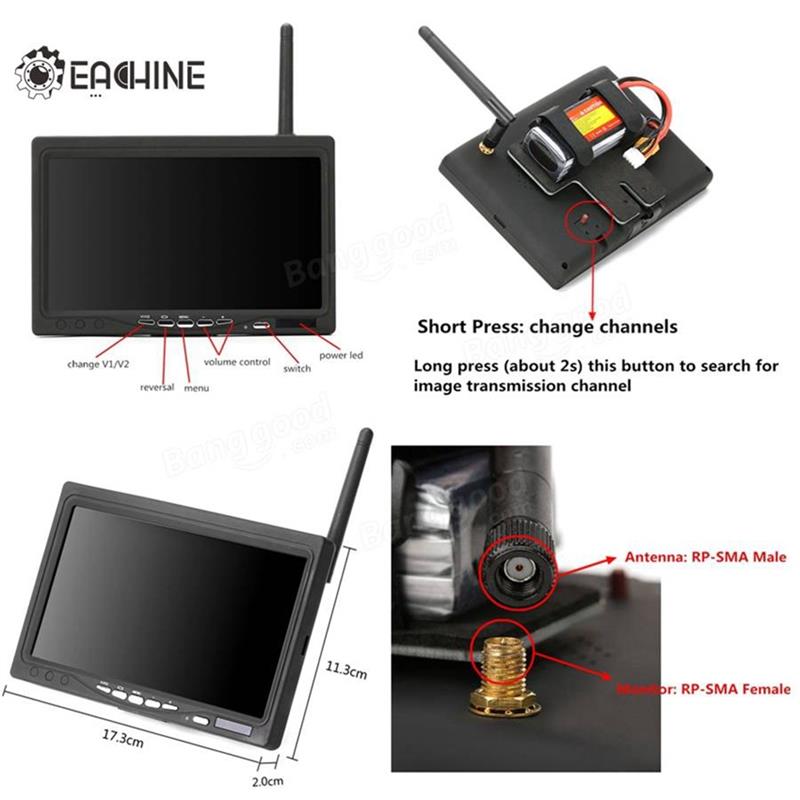

|7 Inch 5.8G 32CH Monitor||
Screen type: TFT LCD Screen/long life, LED backlight
Visual angle: 140/120°(level/vertical)
Wireless receiving: 5.8G 32CH -90dBmreceive sensitivity
Size: 173mm x 113mm x 20mm
Power: DC 12V 3S LIPO
Working temperature: -10~ + 65
Bulit-in 5.8GHZ diversity wireless receiving to receive the best signal.
A key Auto signal search.
Use 5.8GHz ISM frequency -band to avoid the interference of 2.4GHZ frequency -band.
Included an antenna.

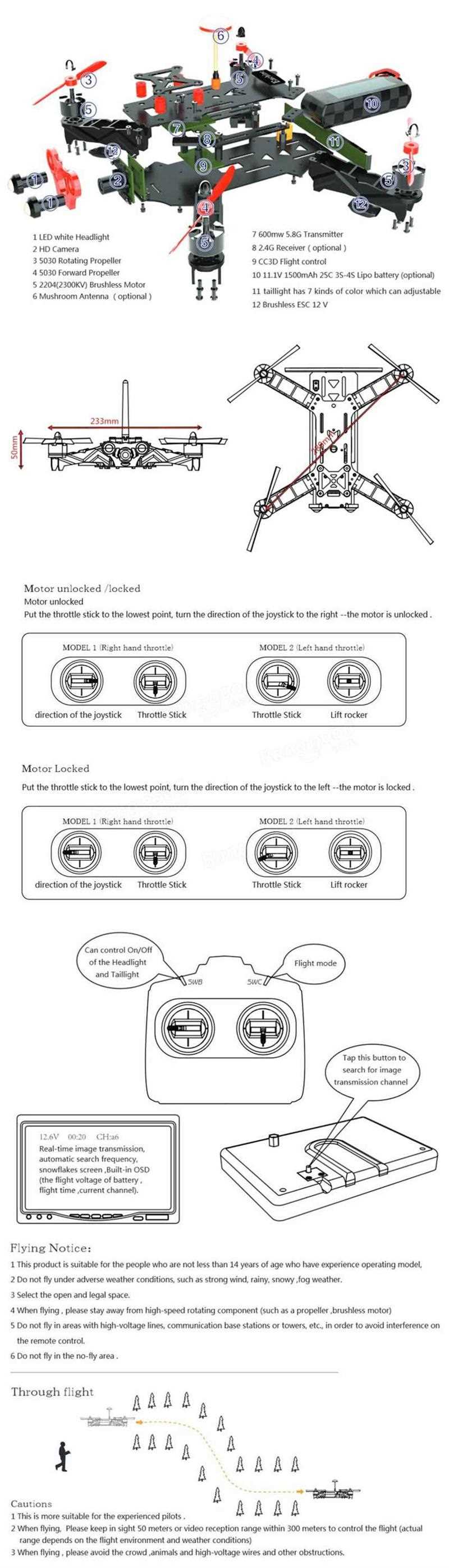

Eachine Racer 250 English manual.

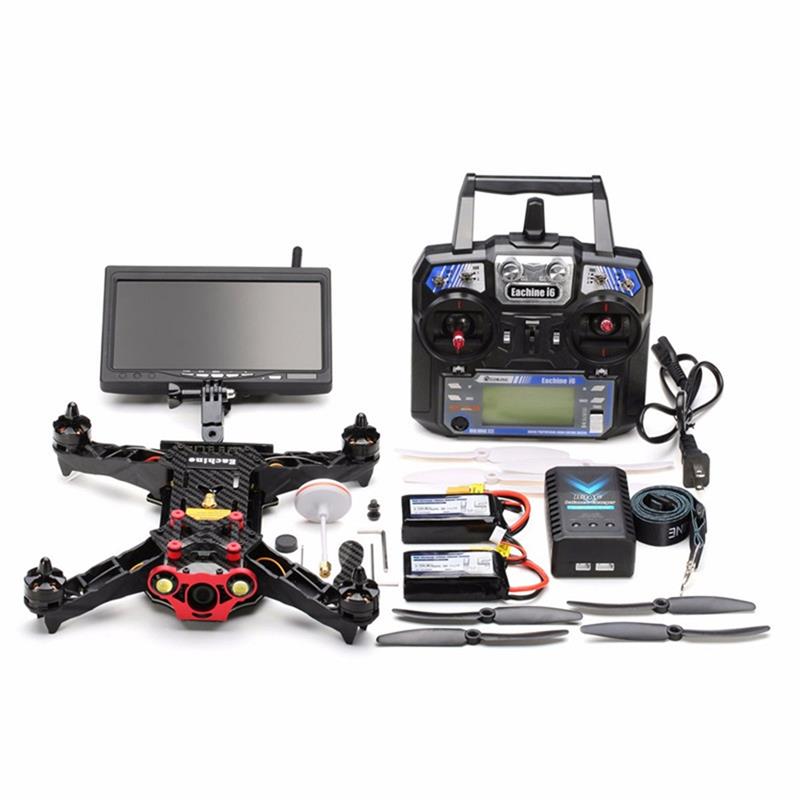

1 x Eachine I6 2.4G Transmitter
1 x Eachine I6 2.4G Receiver
1 x monitor holder
1 x CC3D Flight controller with Flexi port and Main port
2 x headlight LED white 3W
