F11101-D RC RTF GPS Drone HMF600 Carbon Fiber Foldable H-Shaped Quadcopter Hexacopter APM2.8 with Motor ESC AT10 TX&RX Gimbal

$645.00

SKU: 32595837801 Category:

Description

Please kindly notice that our prodcut price not include any tax,and the shipping cost not include the remote area, if you have any request or problem, just contact me freely. Thanks in advance.



RC RTF GPS Drone HMF600 Carbon Fiber Foldable H-Shaped Quadcopter Hexacopter APM2.8  with Motor ESC AT10 TX&RX  Gimbal



To make the parcel smaller,we will take off  some screws,you just need to screw on the frames when you get the item,wish you can understand!



aeProduct.getSubject()

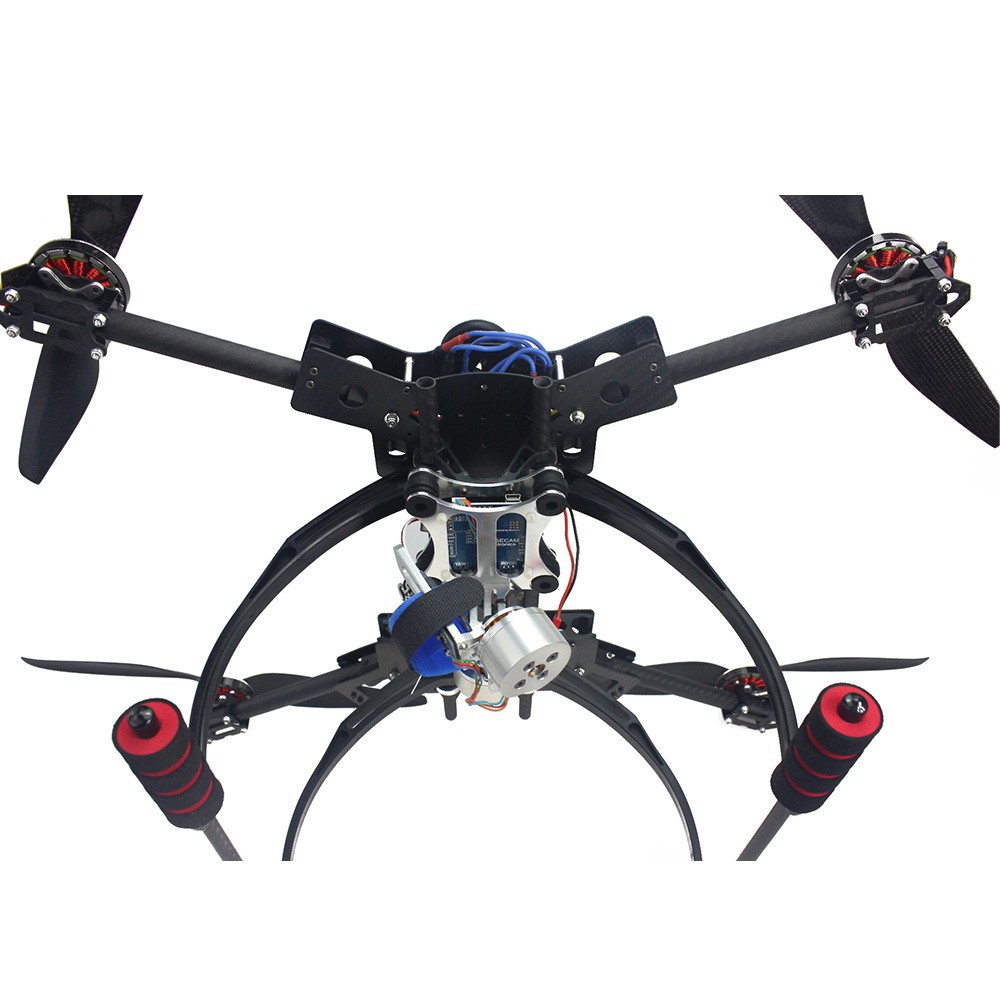

camera gimbal Features:

– Simple structure and light weight,CNC aluminum alloy structure
– Brushless motor direct drive
– With anti-vibration rubber balls,easy to adjust
– Compatible with Gopro3+ Gopro 3/2/1
– with 2pcs 2208 motors and V3 gimbal controller,sensor
– with motor protector which can help heat dissipation
– gimbal weight: 400g

HMF600 RC Drone Quadcopter  frame Specifications:
Features:
This is a new folding copter quadcopter designed for professional FPV system.
16mm thickness tube.
Carbon fiber material.
All the arm tube with standard hole, and easy to assemble.
Folded Size: Length 355mm,Width 205mm
Recommend configuration (not included):
Flight controller: Compatible with most flight controller board (DJI MWC, WKM, FC1212-S, FY20A/30A, MK 2.0, GAUI INS).
Motor: 2212/2216/2814/4822 * 4
ESC: 20-30A
Propeller: HJ1238 Propeller and canopy

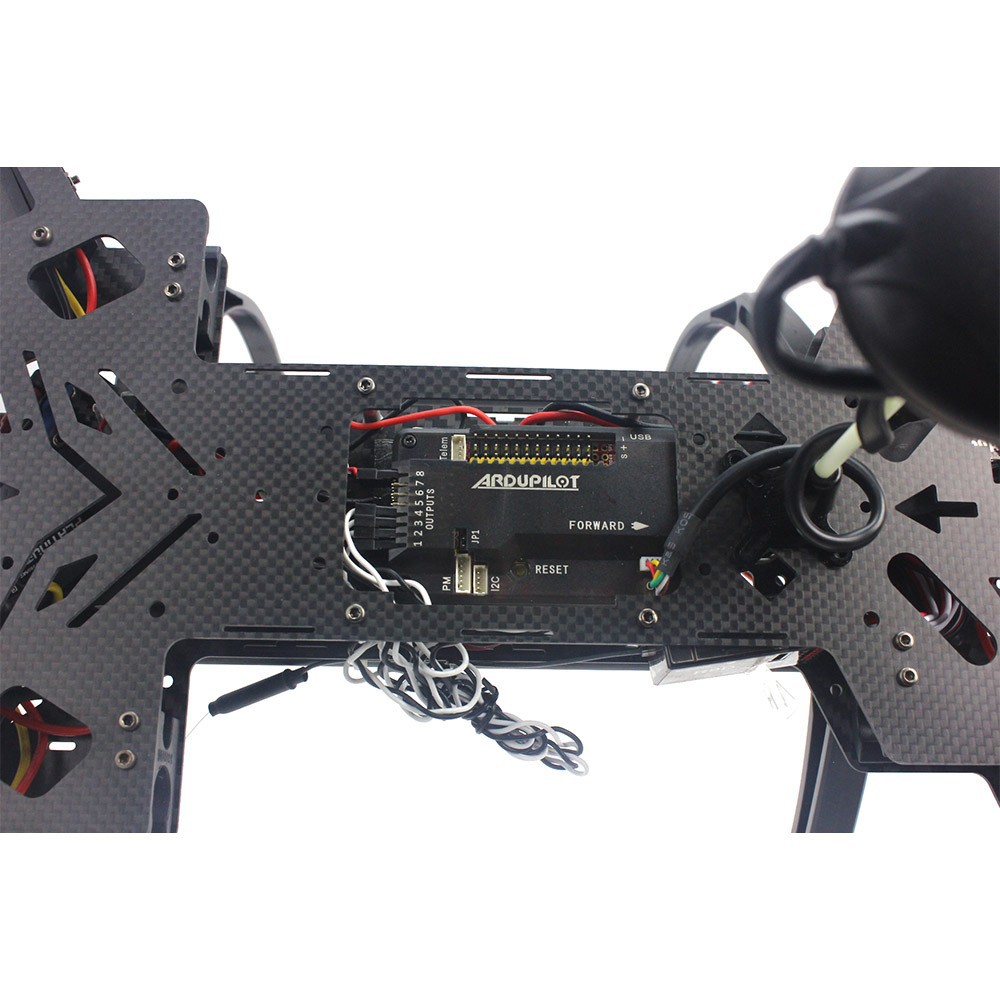

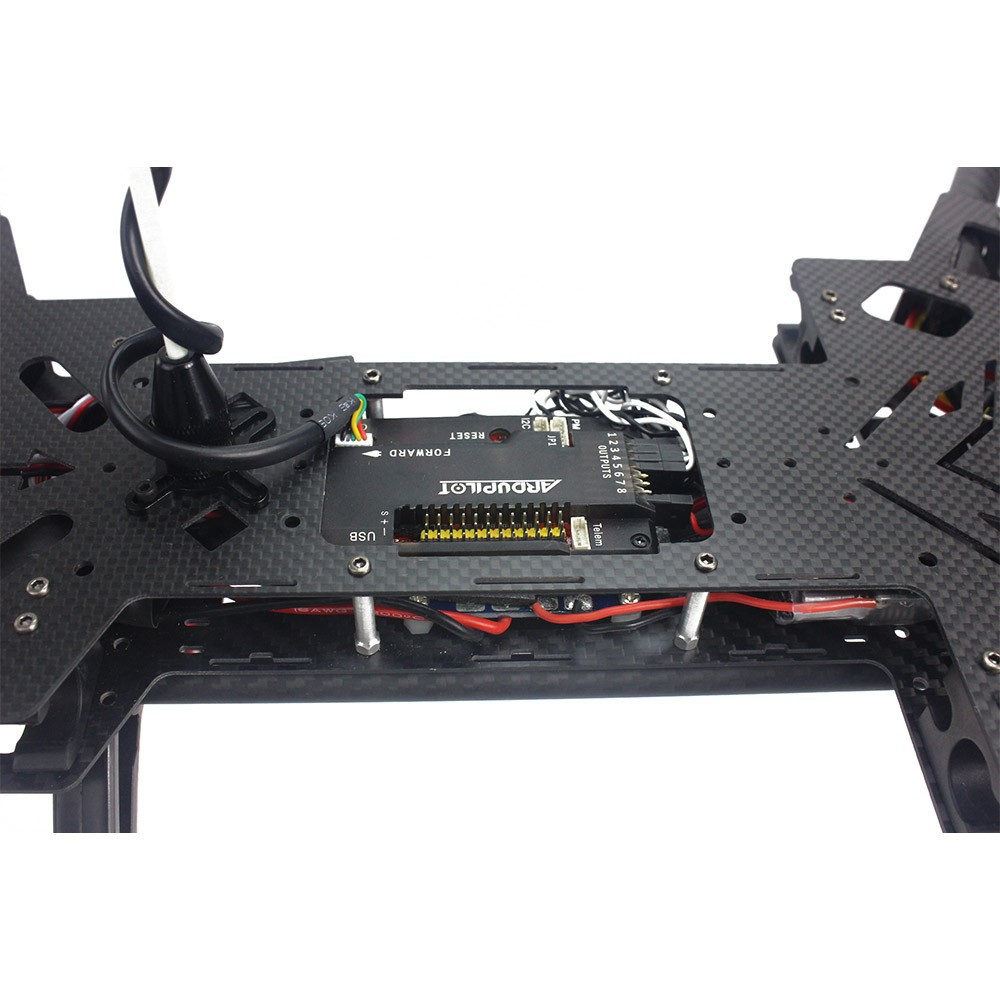

APM 2.8 Multicopter Flight Controller 2.5 :
 Features:
– Arduino Compatible!
– Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
– Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
– Onboard 4 MegaByte Dataflash chip for automatic datalogging
– Optional off-board GPS, uBlox LEA-6H module with Compass.
– One of the first open source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
– Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
– Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.1. data transmission port
2. analog sensor port
3. autostability gimbal output
4. ATMEGA2560 SPI online programming port (be useful for optical flow sensor)
5. USB port
6. remote control input
7. function selection jumper
8. GPS port
9. 12C external compass port
10. ATMEGA32U2 SPI online programming port
11. multifunction configurable MUX port (OSD is the defaulted output)
12. current voltage port
13. ESC power supply selection jumper
14. ESC output port

RadioLink AT10 2.4GHz 10CH Remote Control System :

Features:
Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.
3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
Great control distance: 1.1km on the ground,2km in the sky.
Expansion feedback module,users can get plane details in real time.
Make very setting clear and exactly output result.
Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.


Technical Parameter:
1. Dimension:18×9.5×22cm;
2. Weight:0.95kg;
3. Frequency:2.4GHz ISM band(2400MHz~2485MHz);
4. Modulation mode:QSPK;
5. Channel bandwidth:5.0MHz;
6. Spread spectrum:DSSS;
7. Adjacent channel rejection:>38dBM;
8. Transmitter power: <100mW(PCB testing),
<20dBm(3 meter air testing);
9. Operating Voltage:8.6~15V;
10. Operating Current:<95mA;
11. Control distance:800 meters ground;
12. Channel:10 Channel,8~10 channel are customizable;
13. Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
14. Simulator model:under the simulator model the transmitter action turn off,change to power saving model;
15. Screen:16 colorful screen,size 78×52mm,320*480 pixel.

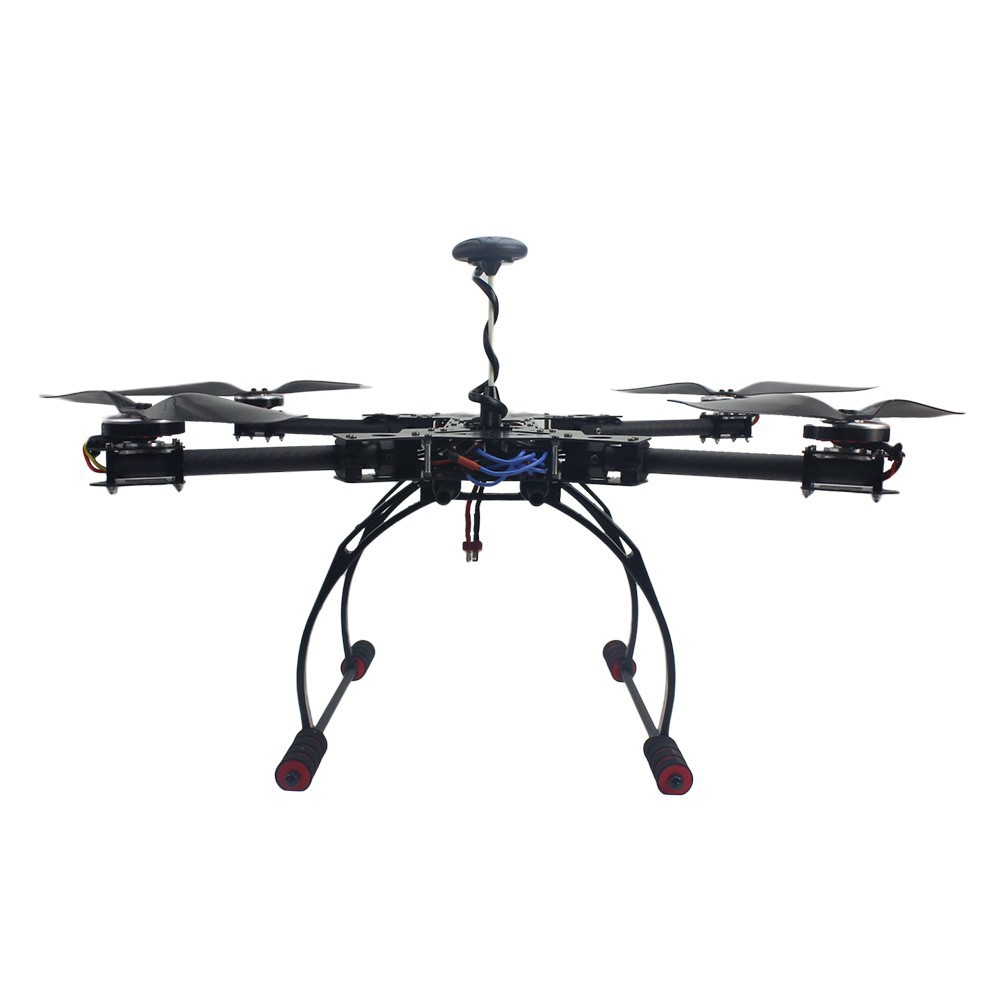

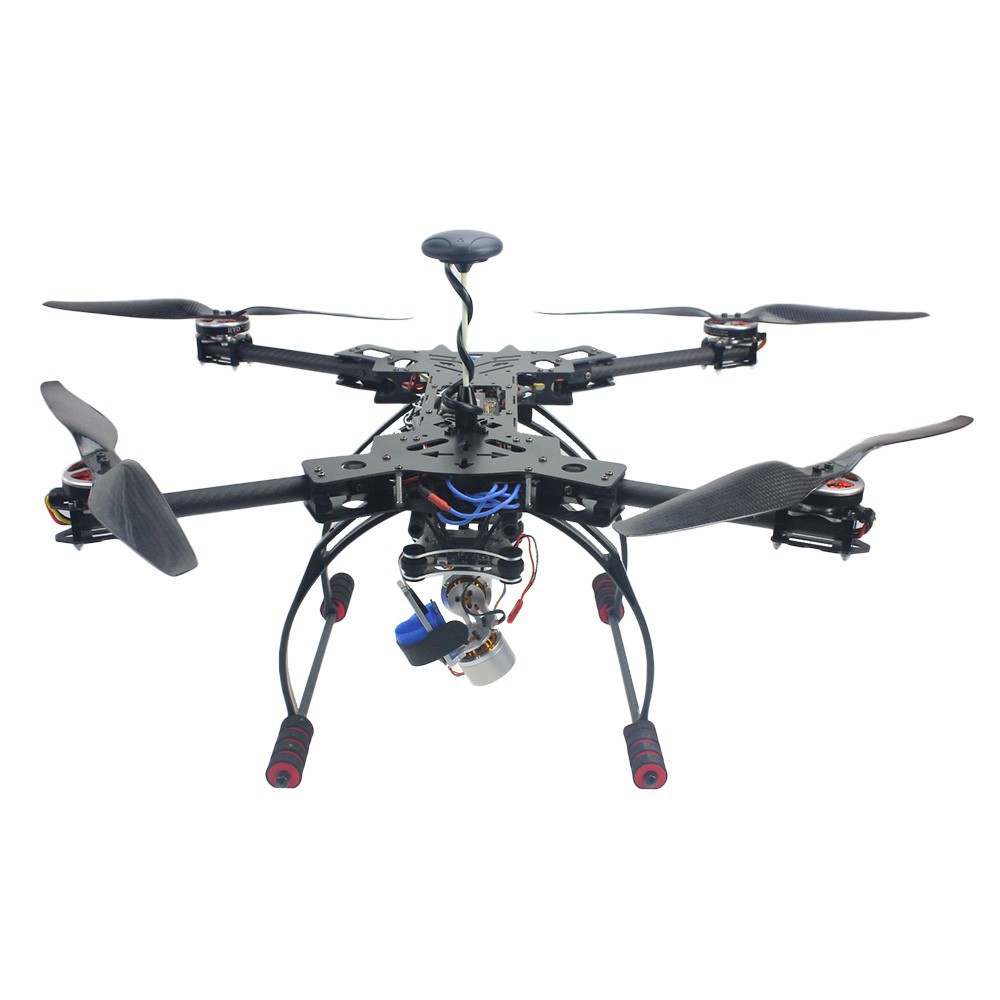

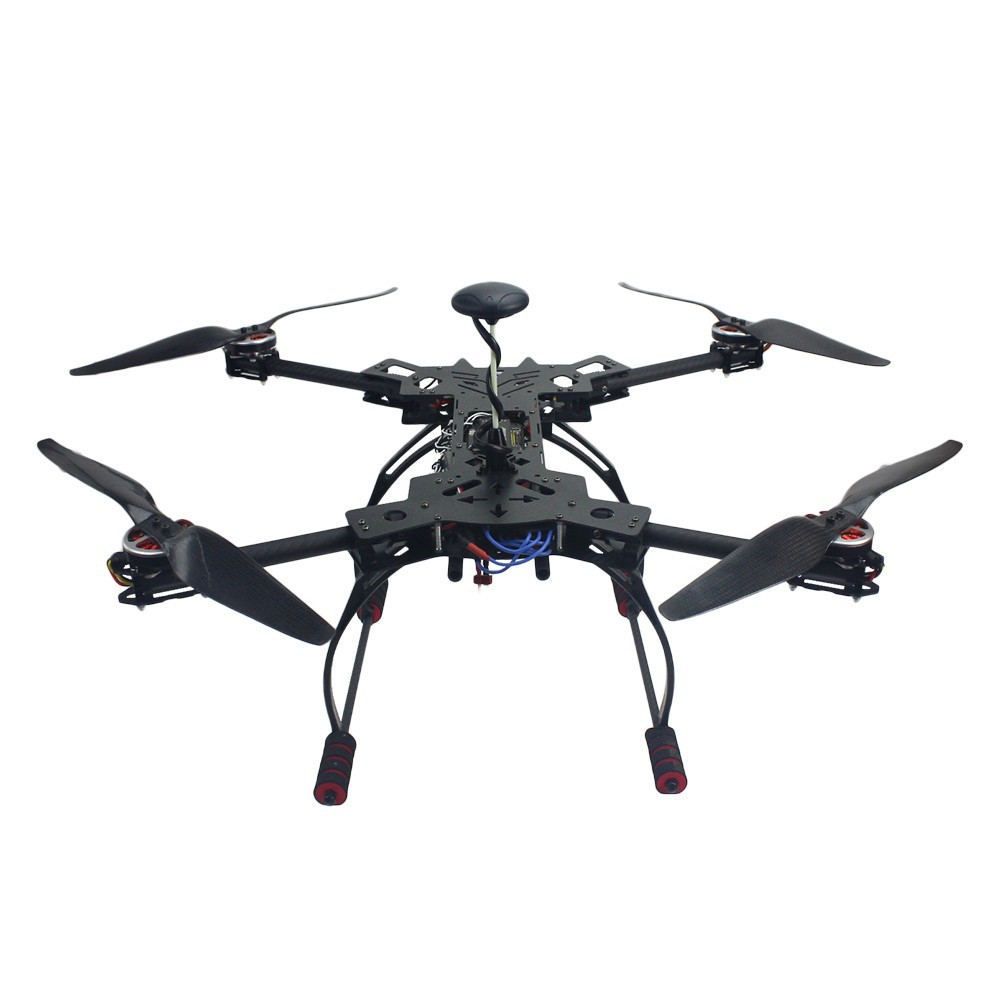

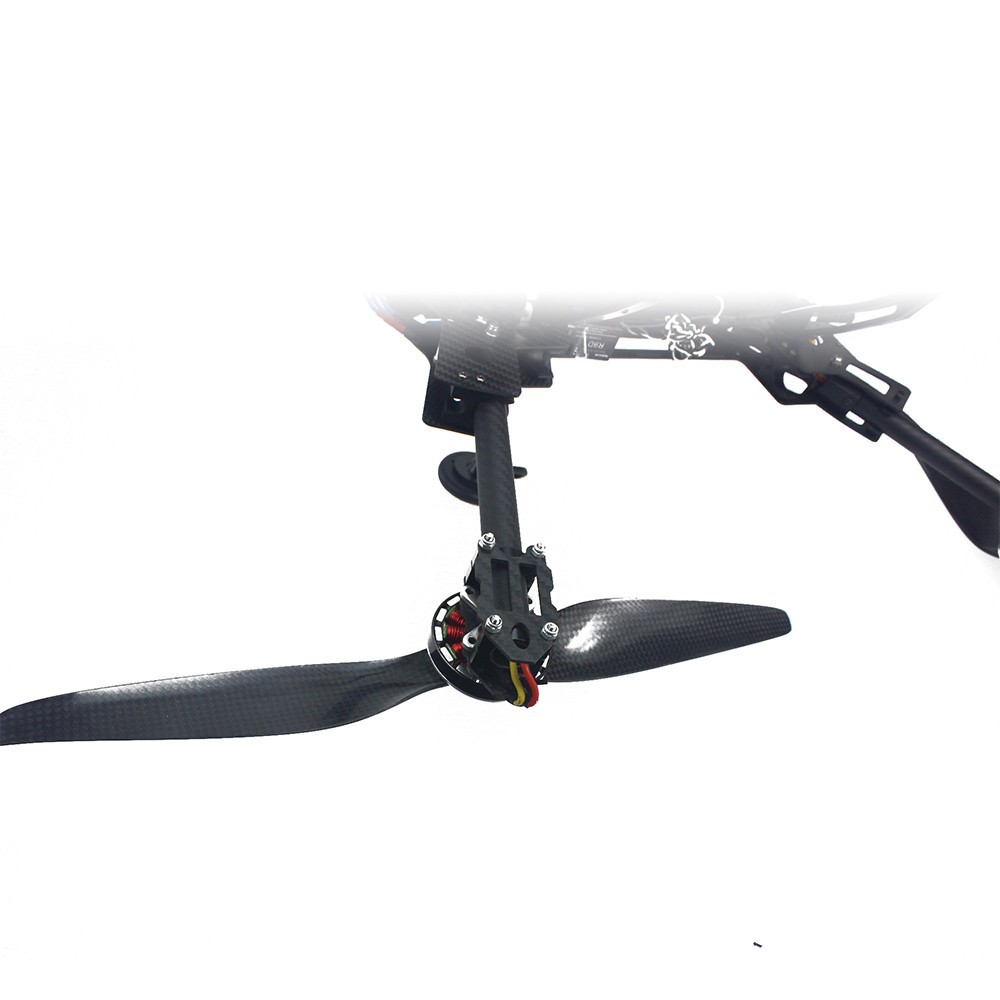

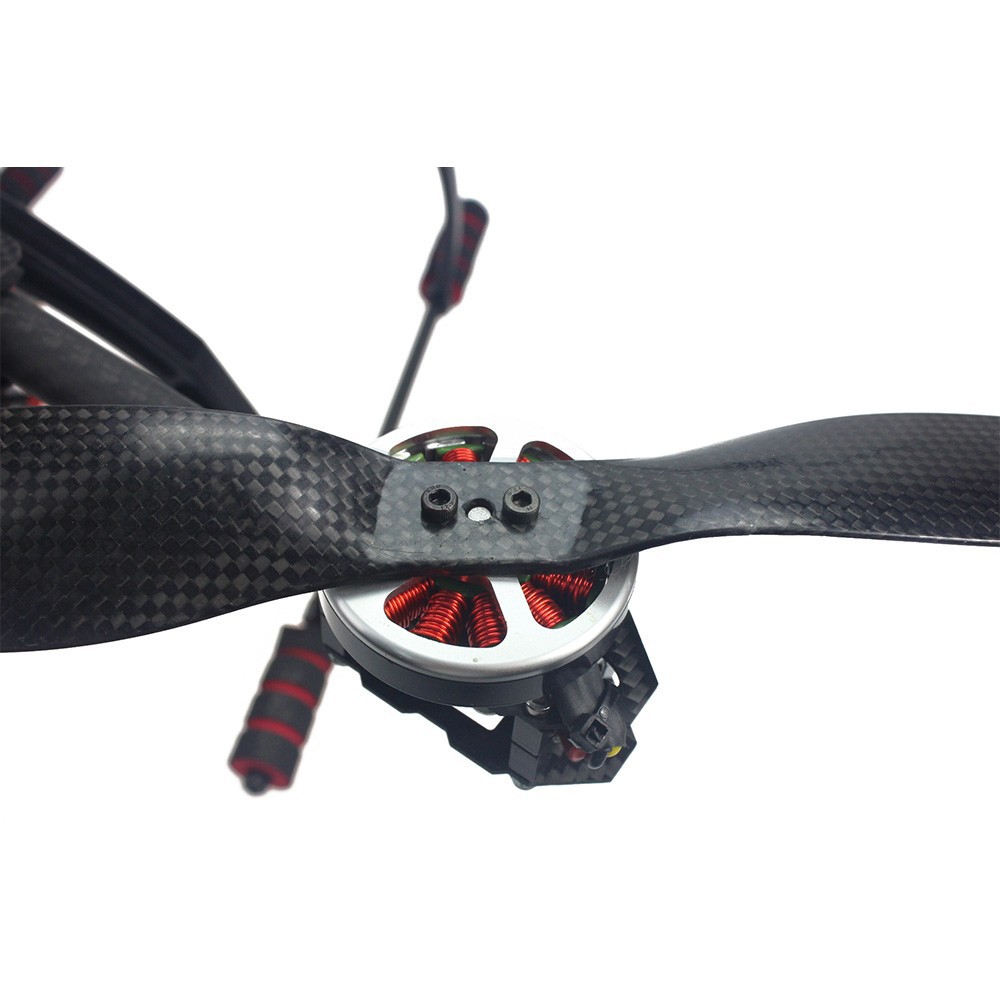

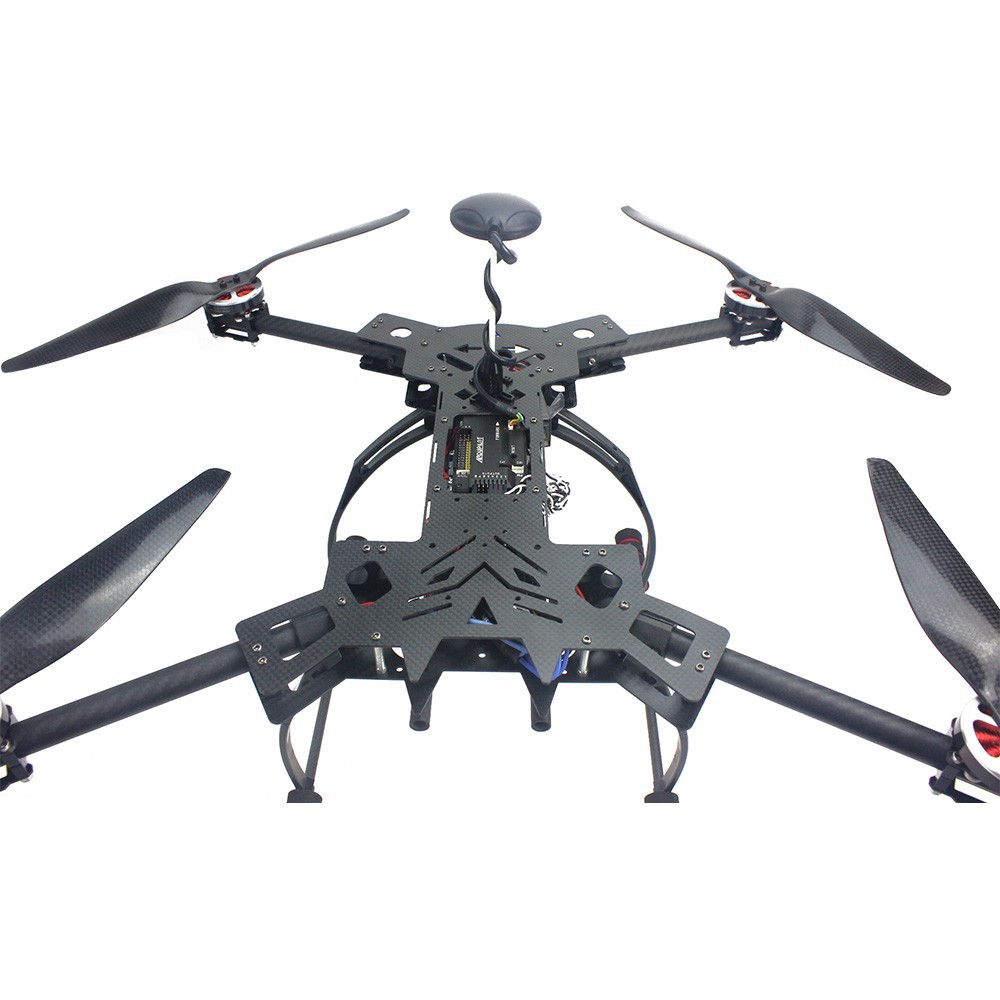

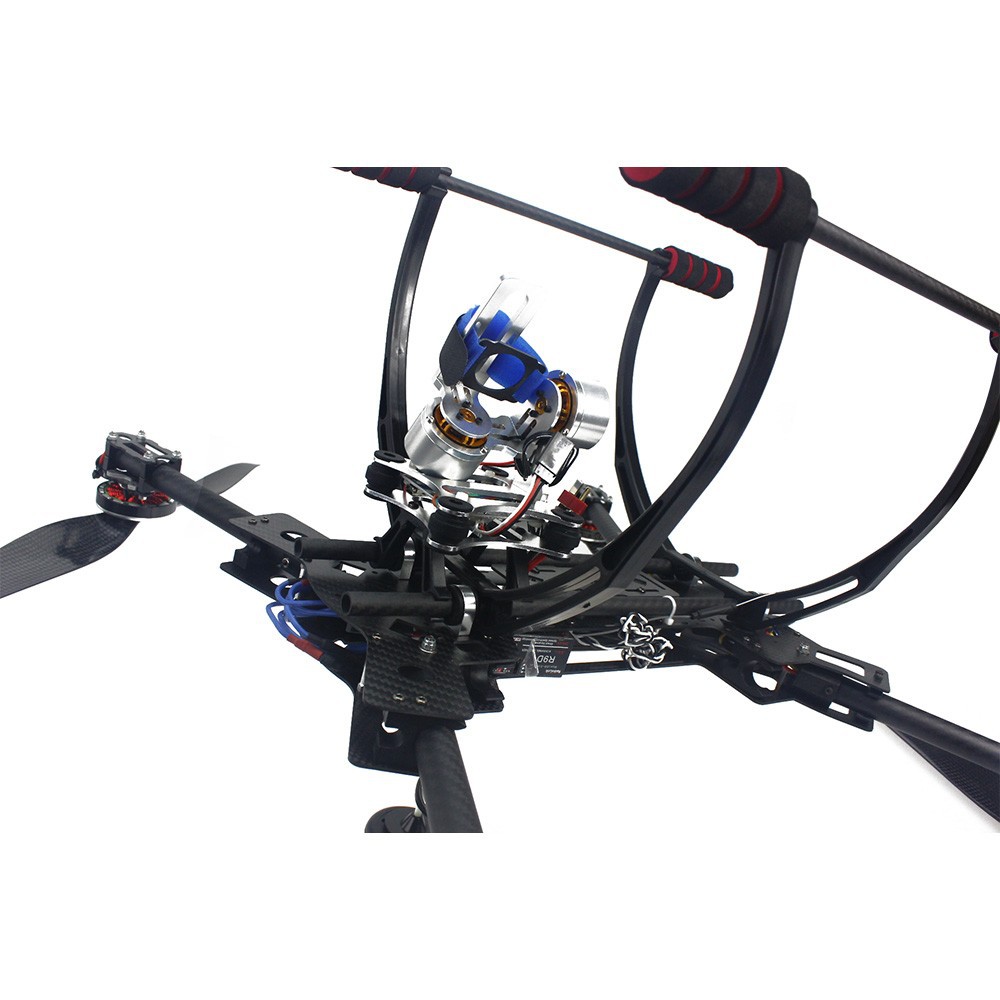

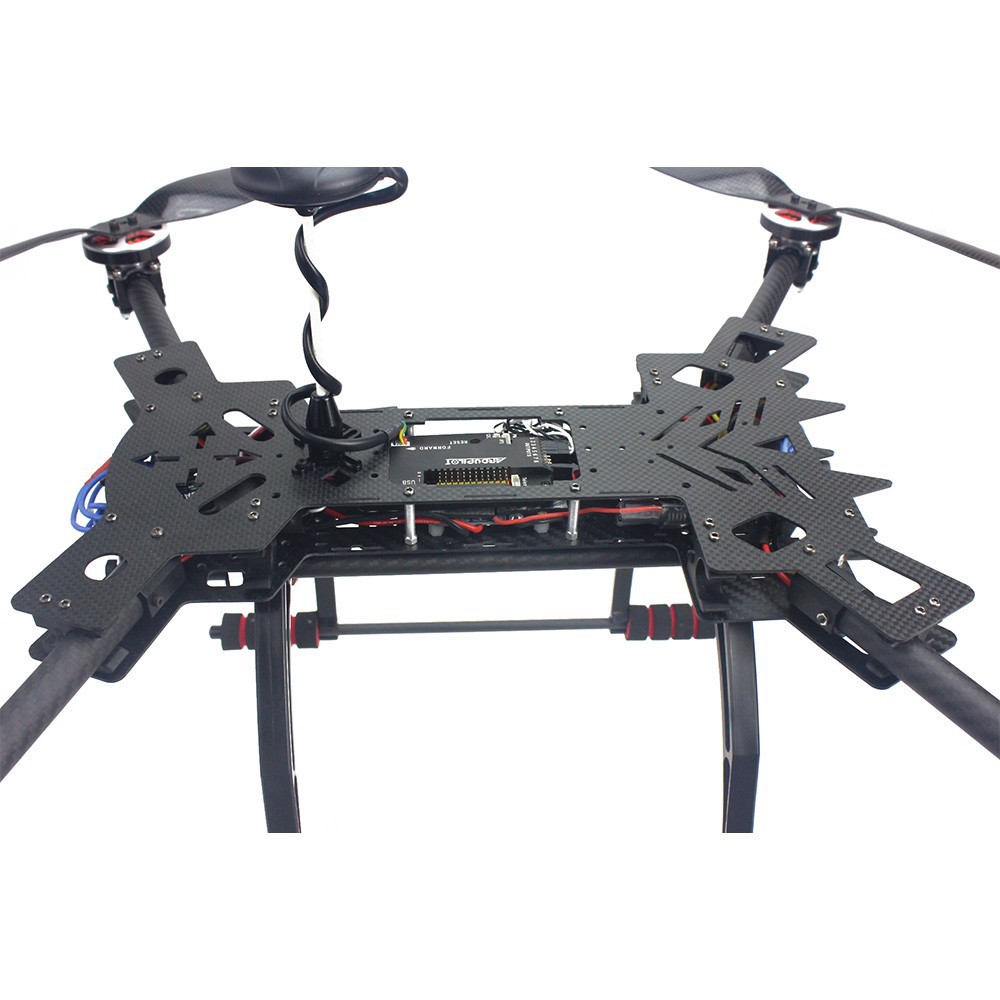

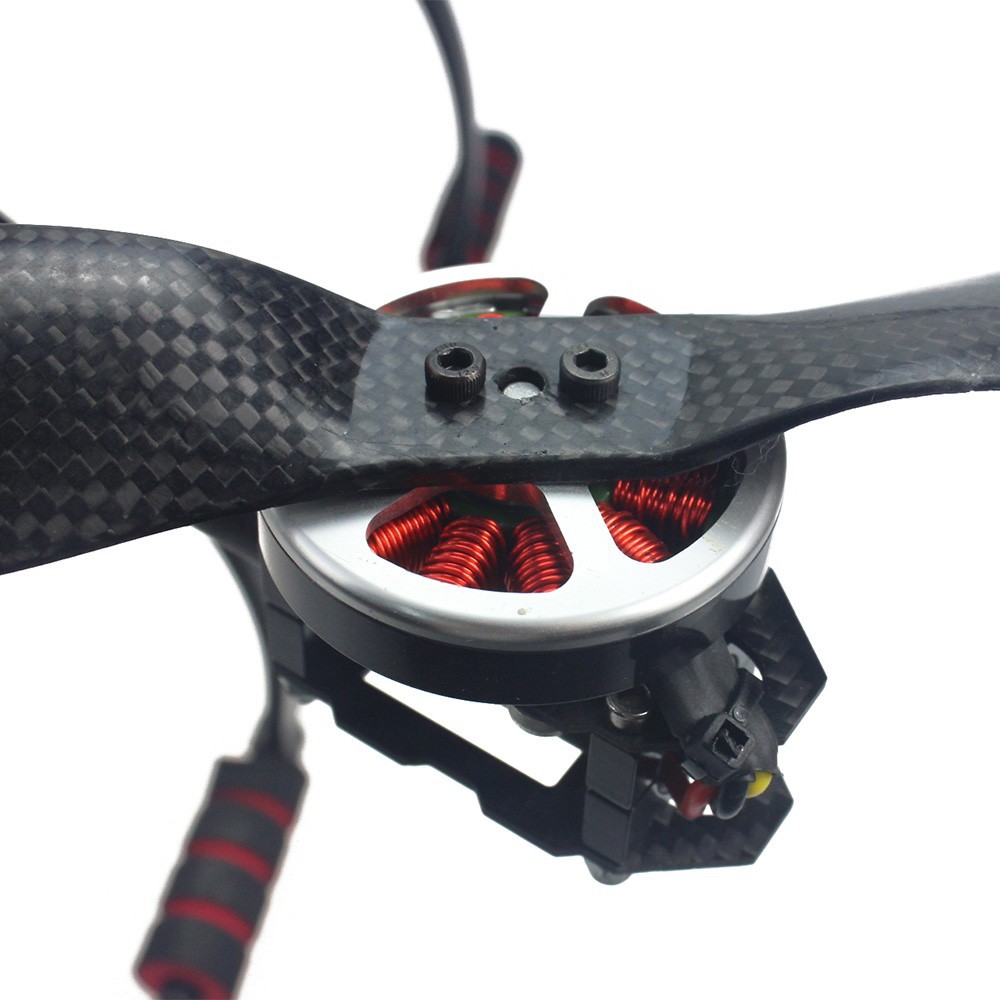

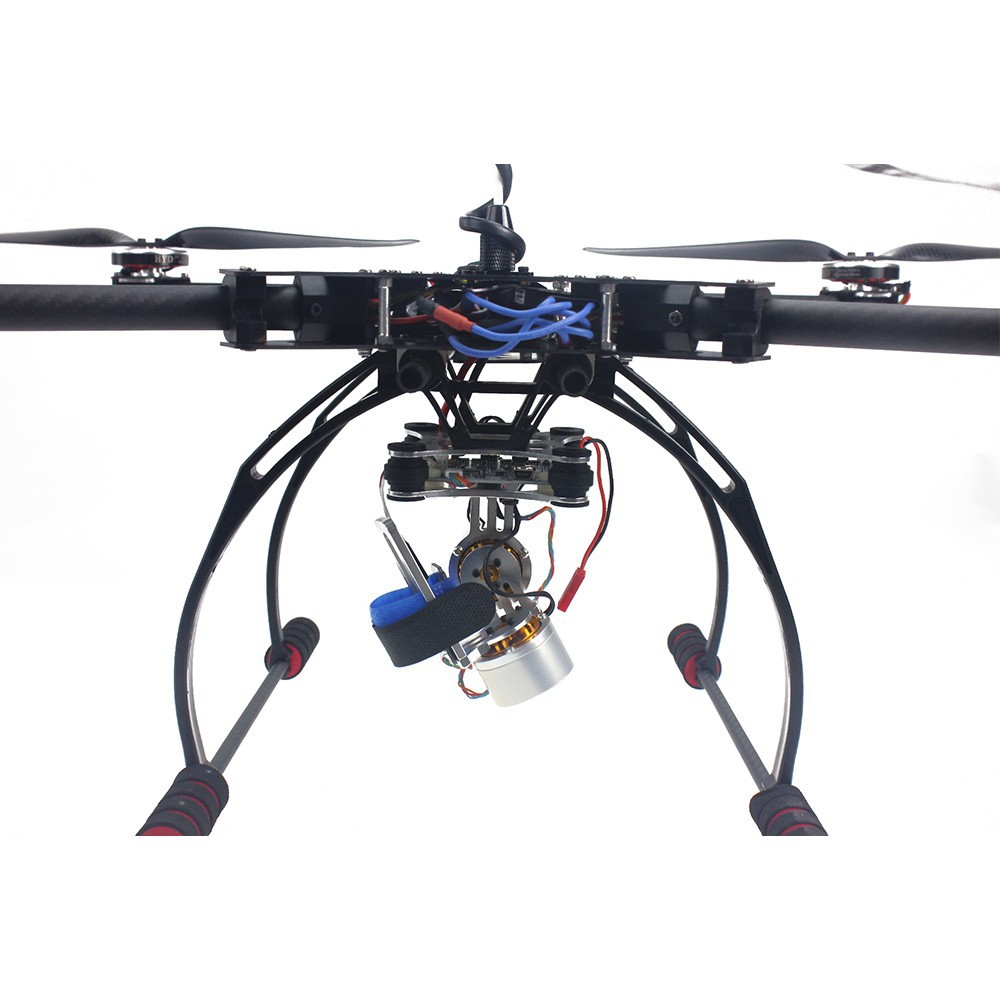

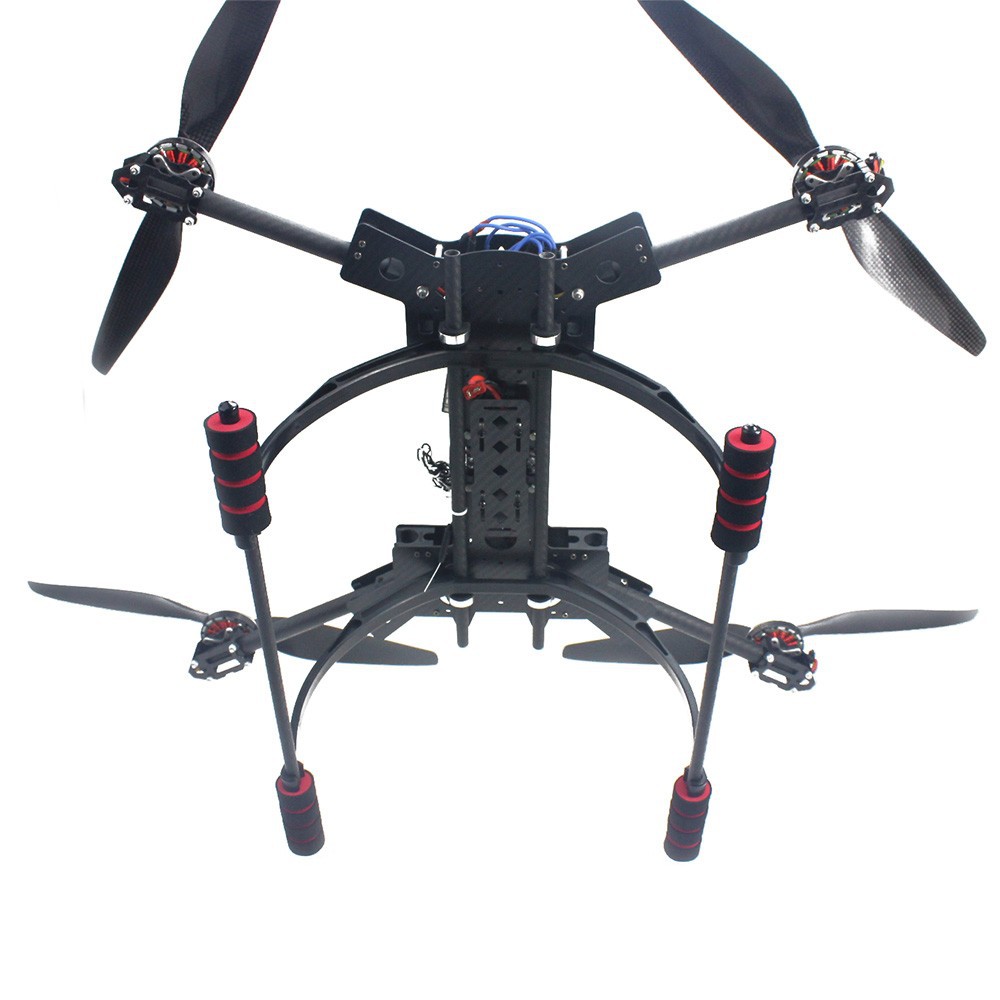

Pictures in details:

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

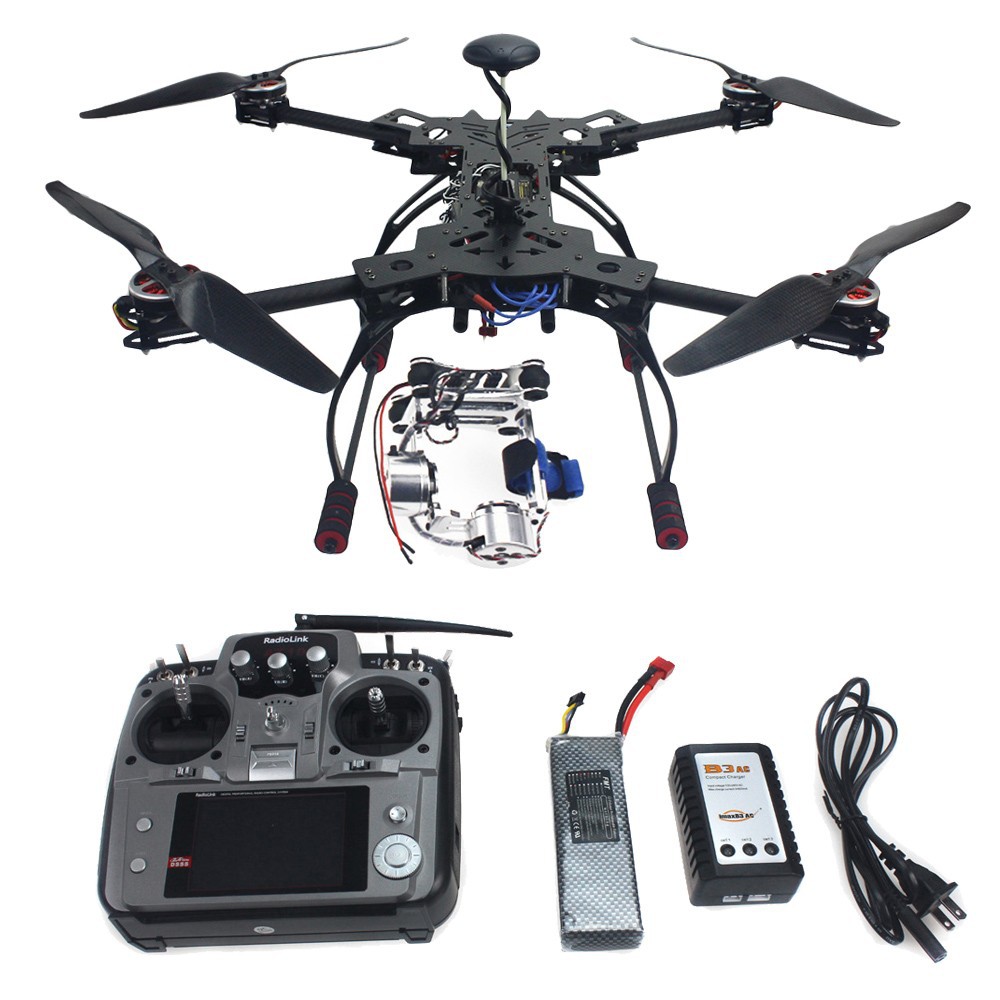

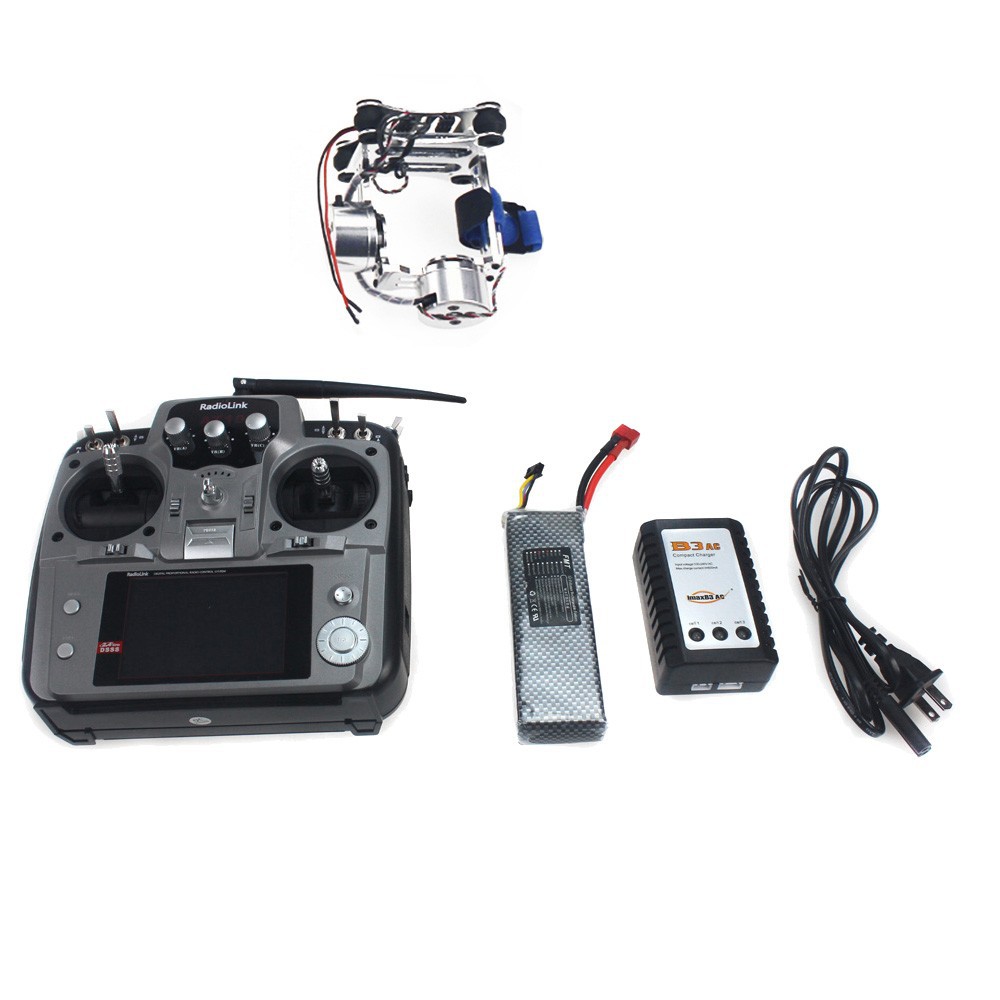

Package listing:

1*   HMF600 Carbon Fiber Foldable H-Shaped   Frame Kit

3*750KV Brushless Disk Motor

3*HOBBYWING Platinum-30A-Pro 2-6S 30A Speed Controller ESC

2*Three-hole High Quality Carbon Fiber 15×5.5  Propeller set

1*APM 2.8 Multicopter Flight Controller 2.5

1*6M GPS with Compass L5883 25cm Cable

1* 10cm Servo Extension Lead Wire Cable

1*GPS Folding Antenna Mount Holder

1*8S-5A U-BEC

1*RadioLink AT10 2.4GHz 10CH Remote Control System TX&RX

1*RC B3 Pro Compact Balance Charger

1*11.1V 3300Mah 25C lithium battery

1* Aluminum 2-axis Gimbal Camera Mount PTZ

1*tool set
