QQ SUPER Multi-rotor Flight Control DIY FPV Multi-rotor Drone Alien Across Carbon Fiber RC Quadrocopter TXRX Motor ESC F11798-C


SKU: 32597910671 Category:


QQ SUPER Multi-rotor Flight Control DIY FPV Multirotor Drone  Alien Across Carbon Fiber RC Hexacopter TX&RX Motor ESC



HMF Totem Q450 Caron Fiber Hexacopter Kits for Multirotor Multicopter FPV Photography:


– Hexacopter arms are anhedral design
– PA66+Glass fiber AIO arm, light weight, better strength
– Brand new structure, changing the old look, Not just carbon fiber board+ hexa spacer+ carbon fiber board
– Good expansion capability
Radiolink T6EHP-E 2.4G 6Ch Transmitter and Receiver:
Digital 2.4GHz 6-Channel RC system T6EHP adopted FHSS 2.4GHz technology, it is applied for 3D helicopter. Owing to the most advanced 2.4GHz radio control technology, it is needless to fit crystals for both transmitter and receiver, meanwhile RC system can avoid the interaction problem best up to the advanced code matching mechanism.
Standard Programming Functions :
Model Select six model memory.
Model Type helicopter programming. (for airplane is another version)
Servo Reversing on all six channels.
Dual Rate/Exponential for ailerons, elevator and rudder.
End Point Adjustment fine-tunes servo throws on all six channels.
Digital Trim stores trim settings for each model for aileron, elevator, rudder and throttle.
Fail Safe a safety throttle setting in case of loss of transmitter signal.
Battery Fail Safe moves the throttle to a preset position when the airborne pack reaches 3.8V.
Stick Mode choose from Mode 1 through 4.
Range Checking Power Down reduces transmitter output power for up to one minute, allowing range checking from 50 paces away.
Changeable Throttle Stick select ratchet for airplanes or smooth for helis.
Adjustable Stick Length choose the length that suits your flying style.
Helicopter-Specific Programming Functions:
5-Point Normal and Idle Up Throttle/Pitch Curves.
Throttle Hold for autorotation.
Revo (Revolution Mixing) mixes rudder and pitch together.
Gyro Mixing two gyro gain settings can be programmed and selected during flight.
Swash to Throttle Mixing corrects slowing of the engine’s speed caused by the swashplate.
Swashplate Types choose from 1S (independent aileron, pitch and elevator servos linked to the swashplate), 3S (120° CCPM), or 3E (90° CCPM).
Swash AFR Adjustable Function Rate, for use with 1S, 3S or 3E swash types

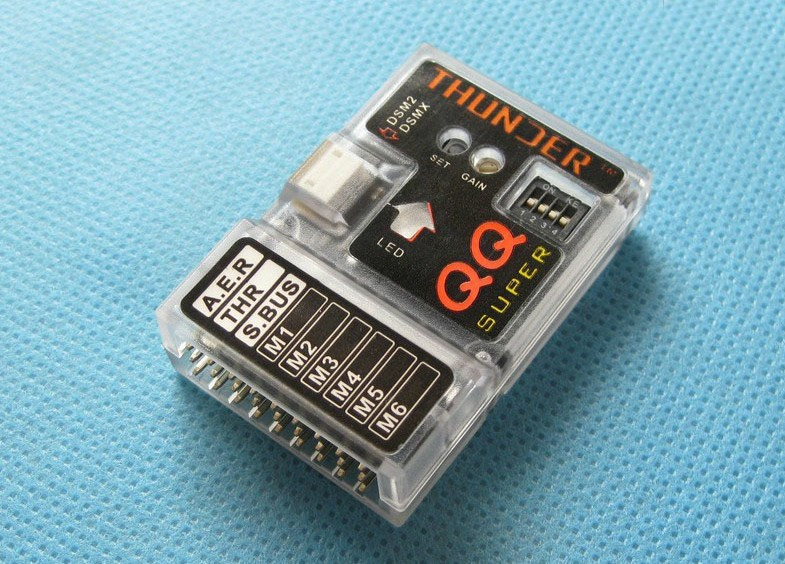

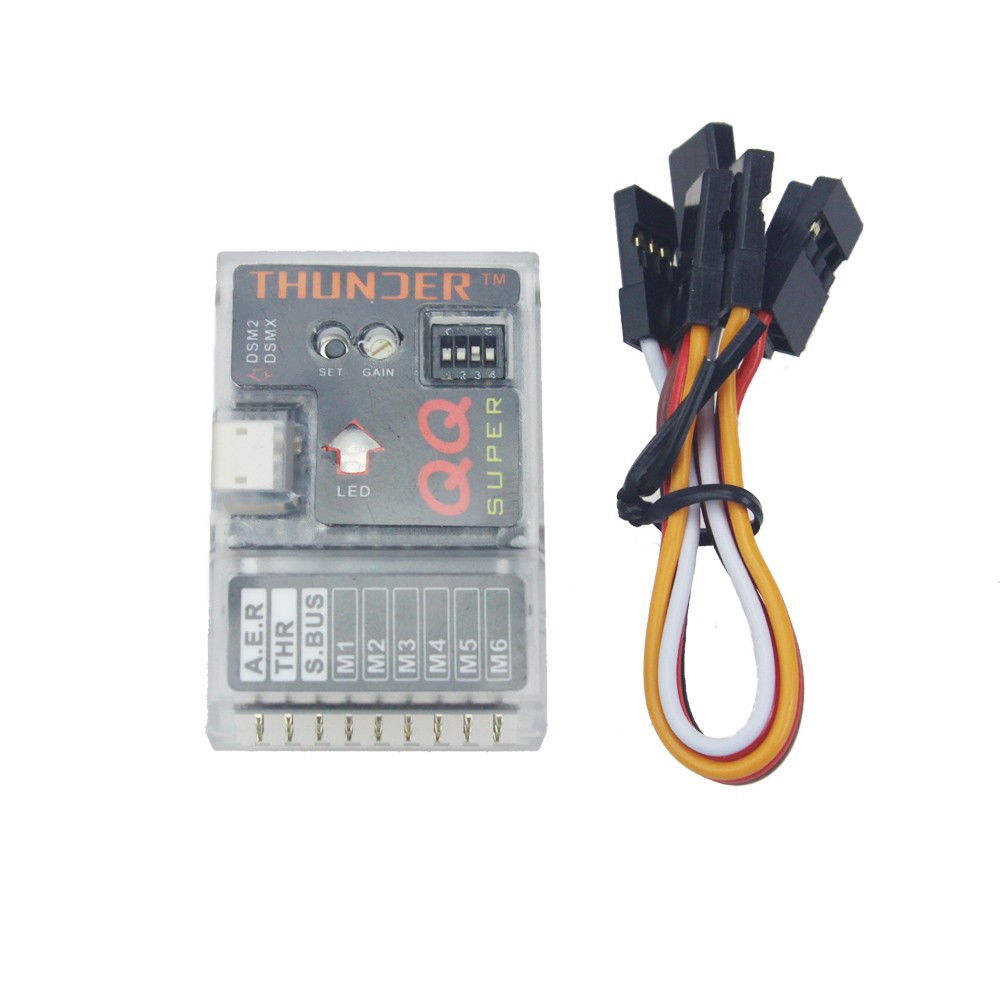

QQ SUPER Multi-rotor Flight Control Built-in 3-axis Gyroscope,KK Upgrade version:
Multi-rotor flight control

Built-in three-axis gyroscope and three-axis acceleration sensor, support for self-stabilizing, super stable flight performance

Support the general receiver, FUTABA S.BUS receiver, DSM2, 11MS,22MS receiver, simplifying connection installation more convenient, ultra-bright LED

Product Specifications:

Processor:32BIT ARM



Output rate:360Hz

Package listing:
Totem Q450 Alien Across Carbon Fiber RC Hexacopter DIY Frame*  1
A2212 1000KV 13T High Quality Brushless Outrunner Motor*6
XT-XINTE 30A Brushless ESC Speed Controller*6
7045 CW CCW propeller *3
QQ SUPER Multi-rotor Flight Control Built-in 3-axis Gyroscope  *
Radiolink T6EHP-E 2.4G 6Ch Transmitter and Receiver *
FMT 11.1V 3300Mah 25C lipo battery *
RC B3 Pro Compact Balance Charger *
tool set*1
